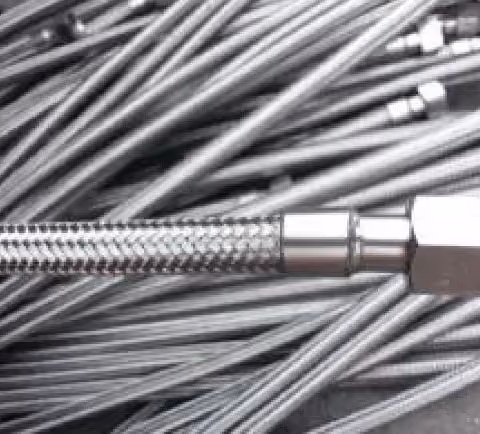

Stainless Steel Corrugated Tube — Types & Sizes
Stainless Steel Corrugated Tube: corrugated SS hose/tube blank OD Φ6–Φ100 for OEM ends. FerruleX RFQ. Stocked sizes ship fast. Export RFQ only — no cart.
- Brand
- FerruleX
- Material
- SS304 / SS316
- OD range
- Φ6–Φ100
- Type
- Corrugated tube
- Order mode
- Factory RFQ
- Stock5–7 days after confirmation
- Make to order15–25 days production
- Payment / termsT/T ~30% or L/C · FOB Shanghai / Ningbo
- OEMLogo and drawings accepted · price on RFQ
Description
The convolution does the work: wall thickness and pitch decide how tight the tube bends and how far it shortens under compression, and neither is fixed by outside diameter. Sizes Φ6, Φ8, Φ10, Φ13, Φ16, Φ20, Φ25, Φ32, Φ38, Φ51, Φ64, Φ75 and Φ100 come in 304 or 316, with 316L on the 1/4 in to 1 in line and non-standard sizes made to drawing. Working pressure is about 1200 psi on that smaller line; the wide stock carries no catalogue figure. Ends leave open for welding or ferrule connection, or finished with male/female thread, flange, tri-clamp, quick-connect or KF vacuum flange from KF16 to ISO100. Instrument signal lines, sensor and optical-scale wiring, heating and process pipework account for most of the volume.
A drawing settles it faster than a size: outside diameter alone leaves wall, pitch, overall length and compressed length open, and two tubes at Φ25 can differ on all of them. KF vacuum ends are supplied in 304 only; the other end forms take 304 or 316.
- Pitch
- Convolution pitch and wall come from the drawing, not from a stock table.
- OD range
- Outside diameter runs from Φ6 to Φ100.
- Alloys
- 304 and 316 stock, with 316L on the 1/4 in to 1 in line.
- End forms
- Open ends for welding or ferrule fitting, plus male/female thread, flange, tri-clamp, quick-connect or KF vacuum ends.
Specifications
| Specification | Value |
|---|---|
| Brand | FerruleX |
| Material | SS304 / SS316 |
| OD range | Φ6–Φ100 |
| Type | Corrugated tube |
| Order mode | Factory RFQ |
Request Quote
Prices stay on the RFQ. Send size, material, quantity and destination — the factory replies with price, lead time and packing. Packing, payment and the usual quote questions are on thedelivery pageand the FAQ.
Questions about this part
Do I need a braid over the corrugated tube?
Supplied unbraided: the convolution carries both the movement and the pressure, and a braid is added only where the line needs external protection or a higher rating. Specify it as a separate line on the drawing.
How is the tube sized for an offset between two fixed points?
Give the offset, the installed length and the compressed length you need, because the bend radius follows pitch and wall rather than outside diameter. Without a compressed length the installed length cannot be checked.
Which movements can the convolution absorb?
Axial compression and extension, lateral offset and angular deflection, within what the pitch and wall thickness allow. Keep the run in one plane where possible; movement in two planes at once has to be checked against the drawing.
Does the pressure figure hold at temperature?
The published figure of about 1200 psi belongs to the 1/4 in to 1 in line only; the Φ32 to Φ100 stock carries none. Alloy strength falls with temperature, so the working pressure for a hot line is confirmed against the drawing.
Can the tube kink where the ferrule is fitted?
Yes, the convolution immediately behind the ferrule takes the whole bend and flattens first. Support the tube close to the end fitting and keep the first convolution straight, or ask for a longer straight section before the end form.
Which KF ends are available and what vacuum do they hold?
KF16, KF25, KF40, KF50, ISO63, ISO80 and ISO100, in 304 only. No vacuum figure is published per size, so state the level the pump set needs on the enquiry and it is confirmed together with the end form.
